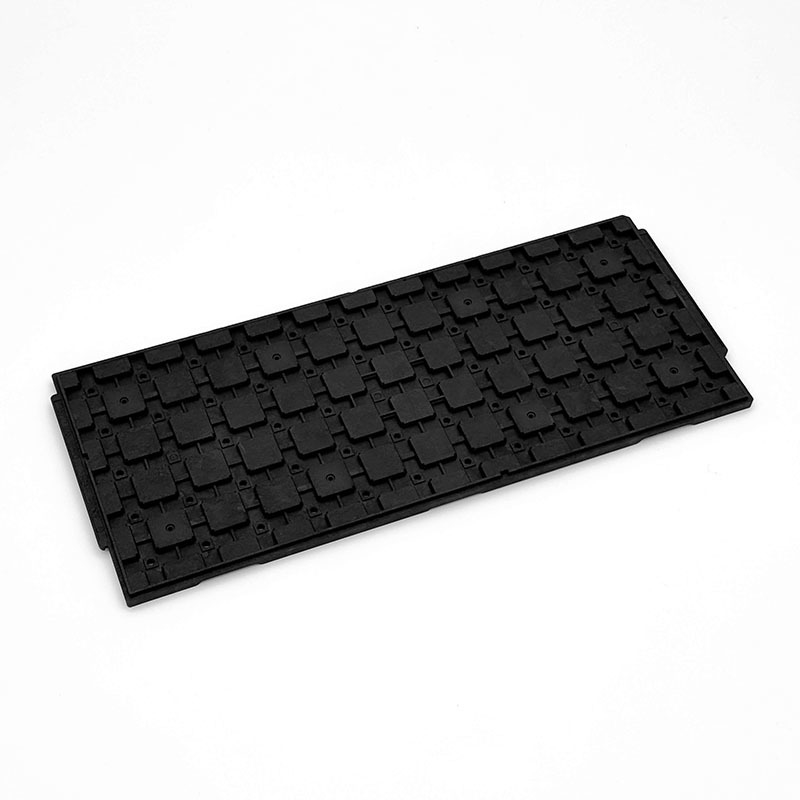

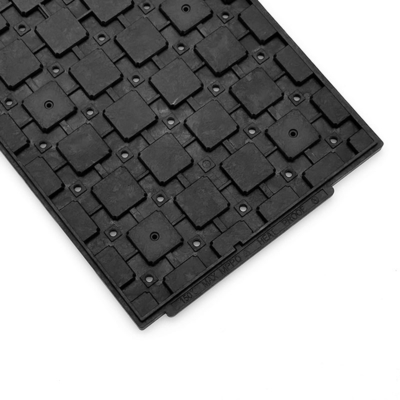

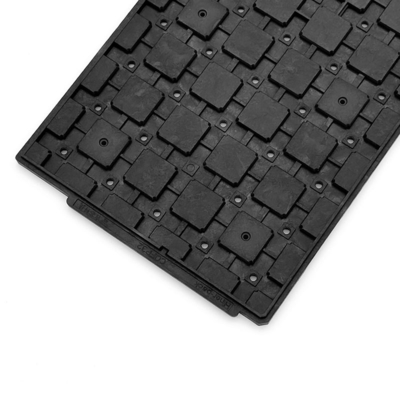

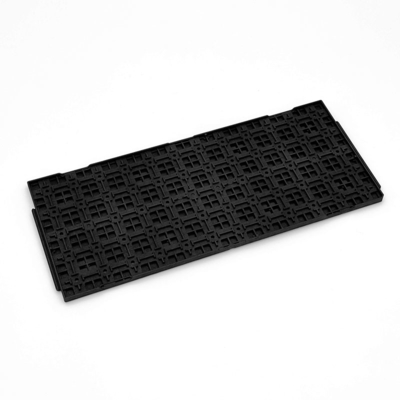

Support Customized Services MPPO Recyclable JEDEC Matrix Tray with High Stability

Support Customized Services MPPO Recyclable JEDEC Matrix Tray with High Stability

브랜드 이름: Hiner-pack
모델 번호: Jedec Matric Tray 시리즈
모크: 500 PCS
가격: TBC
지불 조건: 100% Prepayment
공급 능력: 2000-3000PCS/Day
자세한 정보
원래 장소:
중국에서 만들어졌습니다
인증:
ISO9001, SGS, ROHS
사용자 정의:
표준 및 비표준 지원
표면 저항:
1.0x10E4~1.0x10E11Ω
평탄:
0.76 이하 밀리미터
온도:
125' C
공진기 크기:
8.9*8.9*2.4mm
매트릭스 수량:
5*12 = 60pcs
재료:
MPPO
포장 세부 사항:
70~100pcs/carton (고객 요구에 따라)
Supply Ability:
2000-3000PCS/Day
강조하다:

customized MPPO JEDEC tray

,

recyclable JEDEC matrix tray

,

high stability JEDEC tray

제품 설명

Product Description:


The Matrix Trays made of Modified Polyphenylene Oxide (MPPO), as a flagship product in the high-tech sector, are setting new trends in modern material applications. MPPO, a high-performance engineering plastic alloy derived from polyphenylene oxide (PPO) through specialized modification processes, demonstrates unparalleled advantages in Matrix Trays due to its unique molecular structure and exceptional physical properties. MPPO material boasts exceptional thermal stability and mechanical strength. In high-temperature environments, it maintains excellent physical properties with resistance to thermal decomposition and oxidation, ensuring Matrix Trays 'stability and reliability during high-temperature operations. Additionally, MPPO's high mechanical strength enables it to meet the demands of various complex engineering structures, guaranteeing durability and safety throughout transportation, storage, and usage processes.


Technical Parameters:

Clean Class General And Ultrasonic Cleaning
Temperature 125°C
Material MPPO
Incoterms EXW, FOB, CIF DDU, DDP
Labeling Options Barcode Or Custom Labeling
EsD Protection Yes
Flatness Less Than 0.76mm
Humidity Resistance Up To 90% Relative Humidity
Surface Resistance 1.0x10E4~1.0x10E11Ω
Customized Support Standard And Non-standard


Support and Services:

Our Product Technical Support and Services for Matric Trays include:

- professional technical support team with rich industry knowledge

- offer customized solution services

- product warranty, repair, replacement and technical consultation


Packing and Shipping:

♥we will use waterproof liners when packing Matrix Trays to protect the components on the trays from moisture damage.

♥we select reliable transportation methods and partners to ensure that the goods can arrive at the destination on time and safely.
