제품 상세 정보:
|
| 재료: | ABS | 색: | 검정색 |
|---|---|---|---|
| 특성: | ESD | 디자인: | 표준 |
| 사이즈: | 4 인치 | 표면 저항: | 1.0x10E4~1.0x10E11Ω |
| 종류를 청소하십시오: | 일반적이고 초음파 세척 | HS는 코드화됩니다: | 39239000 |
| 하이 라이트: | PCB 와플 팩 칩 트레이,ABS 와플 팩 칩 트레이,격자무늬 정전기방전 PCB (폴리염화비페닐) 트레이 |
||

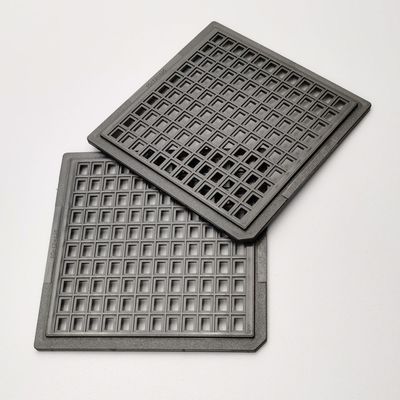

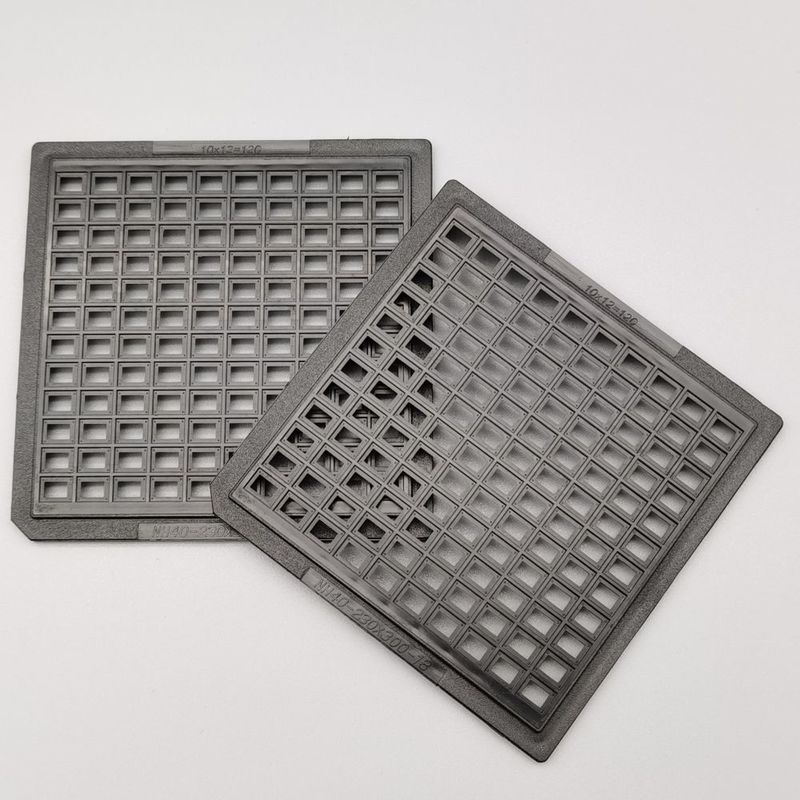

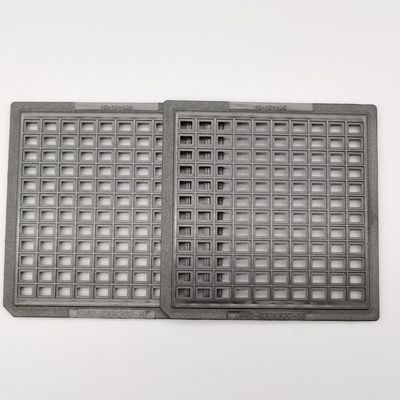

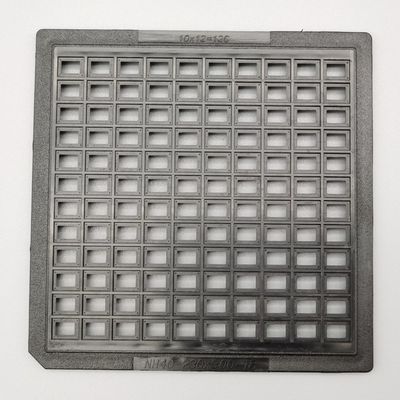

Electronic Components Waffle Pack Chip Trays ABS ESD Trays For IC
Hollow Chip Trays Are Designed To Avoid Contact With Sensitive Areas Of Electronic Components
The use of anti-static tray storage electronic components, can effectively avoid short circuit phenomenon.Because the product is prone to friction in the process of placement and transportation, if there is some static electricity on the circuit board of the product, it is easy to lead to short circuit of the circuit board, affecting the quality of the product, and may even cause damage.
Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded - the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.
Application
Semiconductor Wafer Die Wafter Bare, Electronic components, optical electronic components, etc
Our Advantages
1. Flexible OEM service: we can produce products according to customer’s sample or design.
2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3. Complicated workmanship: tooling making, Injection molding,Production
4. Comprehensive customer service: from customer consultation to after sales service.
5. 10 years’ex perience of OEM for USA and EU customers.
6. We have our own factory and can control quality in high level and produce products quickly and flexibly.
Service
We offer ESD total Solution to Customer, Many other related product available if needed.
OEM is welcomed or design as customer request.
The best & professional sale services.
Honest but competitive price and Quality assured quotation.
100% QC inspection before shipment.
| Outline Line Size | 101.57*101.57*3mm | Brand | Hiner-pack |
| Model | HN230*300-18 | Package Type | IC Parts |
| Cavity Size | 5.84*7.62*0.46mm | Matrix QTY | 10*12=120PCS |
| Material | ABS | Flatness | MAX 0.3mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
| Customized Size | |
| Item Material | ABS / PC / MPPO / PPE... acceptable |
| OEM&ODM | YES |
| Item Color | Can be customized |
| Feature | Durable;Reusable;Rcofriendly;Biodegradable |
| Sample | A. The free samples: choosen from existing products. |
| B. customized samples as per your design/demand | |
| MOQ | 500pcs. |
| Packing | Carton or as per customer's request |
| Delivery time | Usually 8-10 working days,depends on order quantity |
| Term of payment | Products:100% prepayment. Mold:50% T/T deposit, 50% balance after sample confirmation |
FAQ
Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
